8.3.3 Confidence Intervals for Normal Samples

In the above discussion, we assumed $n$ to be large so that we could use the CLT. An interesting aspect of the confidence intervals that we obtained was that they often did not depend on the details of the distribution from which we obtained the random sample. That is, the confidence intervals only depended on statistics such as $\overline{X}$ and $S^2$. What if $n$ is not large? In this case, we cannot use the CLT, so we need to use the probability distribution from which the random sample is obtained. A very important case is when we have a sample $X_1$, $X_2$, $X_3$, $...$, $X_{n}$ from a normal distribution. Here, we would like to discuss how to find interval estimators for the mean and the variance of a normal distribution. Before doing so, we need to introduce two probability distributions that are related to the normal distribution. These distributions are useful when finding interval estimators for the mean and the variance of a normal distribution.

Chi-Squared Distribution

Let us remember the gamma distribution. A continuous random variable $X$ is said to have a gamma distribution with parameters $\alpha>0$ and $\lambda>0$, shown as $X \sim Gamma(\alpha, \lambda)$, if its PDF is given by \begin{equation} \nonumber f_X(x) = \left\{ \begin{array}{l l} \frac{\lambda^{\alpha} x^{\alpha-1} e^{-\lambda x}}{\Gamma(\alpha)}& \quad x>0\\ 0 & \quad \textrm{otherwise} \end{array} \right. \end{equation} Now, we would like to define a closely related distribution, called the chi-squared distribution. We know that if $Z_1$, $Z_2$, $\cdots$, $Z_n$ are independent standard normal random variables, then the random variable \begin{align}%\label{} X=Z_1+Z_2+\cdots+Z_n \end{align} is also normal. More specifically, $X \sim N(0, n)$. Now, if we define a random variable $Y$ as \begin{align}%\label{} Y=Z^2_1+Z^2_2+\cdots+Z^2_n, \end{align} then $Y$ is said to have a chi-squared distribution with $n$ degrees of freedom shown by \begin{align}%\label{} Y \sim \chi^2(n). \end{align} It can be shown that the random variable $Y$ has, in fact, a gamma distribution with parameters $\alpha=\frac{n}{2}$ and $\lambda=\frac{1}{2}$, \begin{align}%\label{} Y \sim Gamma\left(\frac{n}{2},\frac{1}{2}\right). \end{align} Figure 8.5 shows the PDF of $\chi^2(n)$ distribution for some values of $n$.
alpha-color

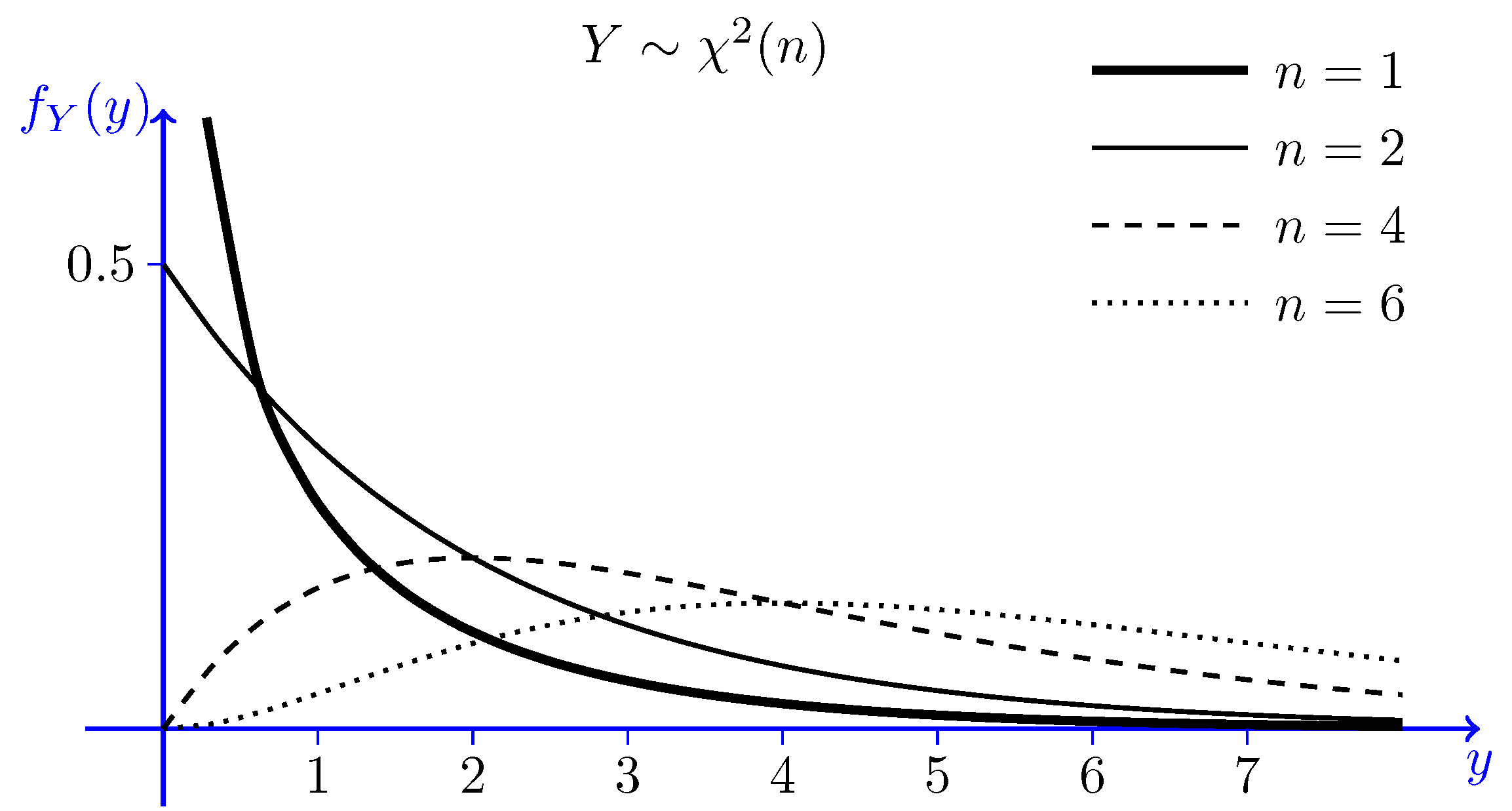

Figure 8.5 - The PDF of $\chi^2(n)$ distribution for some values of $n$.
So, let us summarize the definition and some properties of the chi-squared distribution.

The Chi-Squared Distribution

Definition . If $Z_1$, $Z_2$, $\cdots$, $Z_n$ are independent standard normal random variables, the random variable $Y$ defined as \begin{align}%\label{} Y=Z^2_1+Z^2_2+\cdots+Z^2_n \end{align} is said to have a chi-squared distribution with $n$ degrees of freedom shown by \begin{align}%\label{} Y \sim \chi^2(n). \end{align} Properties:
  1. The chi-squared distribution is a special case of the gamma distribution. More specifically, \begin{align}%\label{} Y \sim Gamma\left(\frac{n}{2},\frac{1}{2}\right). \end{align} Thus, \begin{equation} \nonumber f_Y(y) = \frac{1}{2^{\frac{n}{2}} \Gamma\left(\frac{n}{2}\right)} y^{\frac{n}{2}-1} e^{-\frac{y}{2}}, \quad \textrm{for } y>0. \end{equation}
  2. $EY=n$, $\textrm{Var}(Y)=2n$.

  3. For any $p \in [0,1]$ and $n \in \mathbb{N}$, we define $\chi^2_{p,n}$ as the real value for which \begin{align}%\label{} P(Y > \chi^2_{p,n})=p, \end{align} where $Y \sim \chi^2(n)$. Figure 8.6 shows $\chi^2_{p,n}$. In MATLAB, to compute $\chi^2_{p,n}$ you can use the following command: $\mathtt{chi2inv(1-p,n)}$
alpha-color

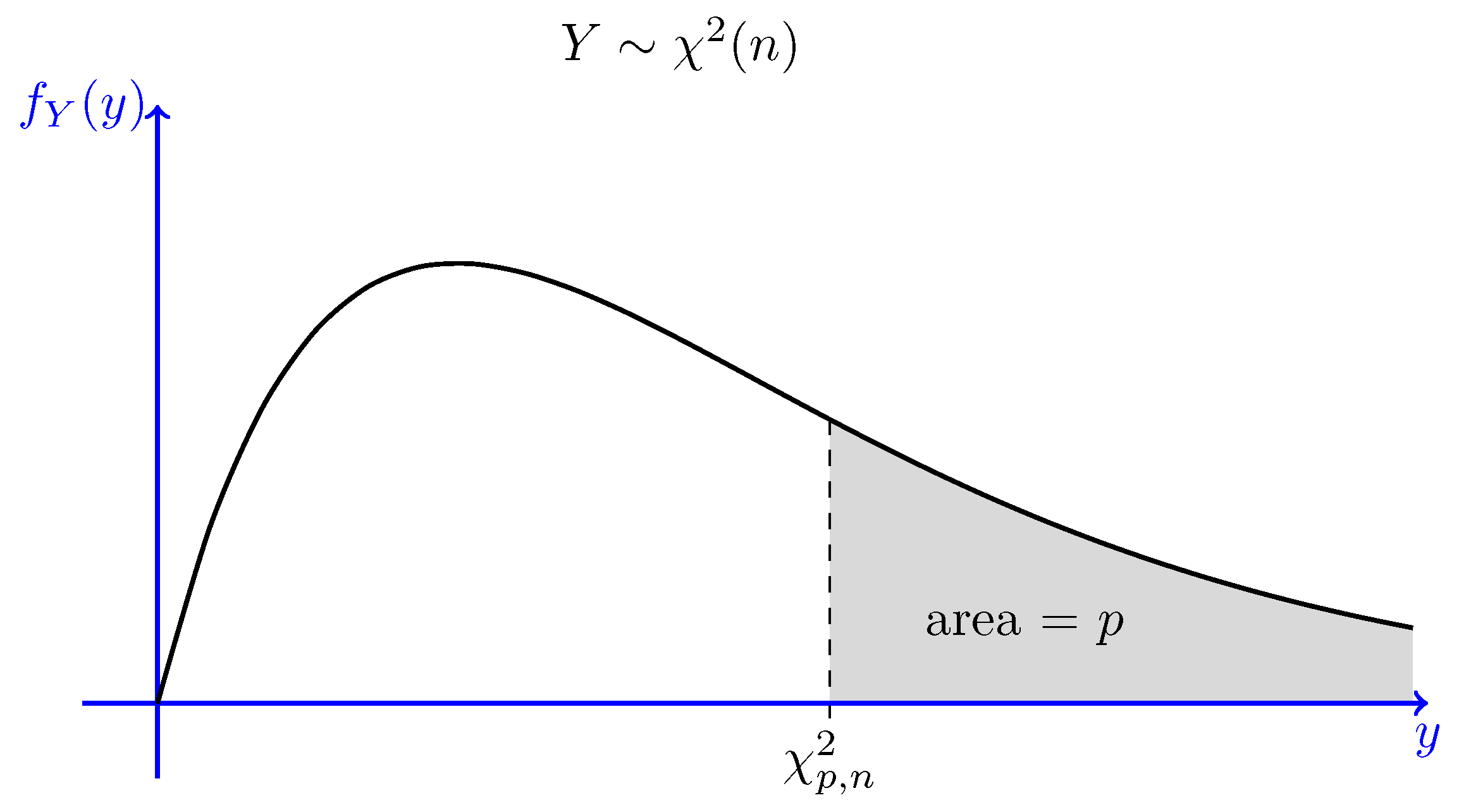

Figure 8.6 - The definition of $\chi^2_{p,n}$.
Now, why do we need the chi-squared distribution? One reason is the following theorem, which we will use in estimating the variance of normal random variables.
Theorem . Let $X_1$, $X_2$, $\cdots$, $X_n$ be i.i.d. $N(\mu, \sigma^2)$ random variables. Also, let $S^2$ be the sample variance for this random sample. Then, the random variable $Y$ defined as \begin{equation} Y=\frac{(n-1)S^2}{\sigma^2}=\frac{1}{\sigma^2}\sum_{i=1}^{n} (X_i-\overline{X})^2 \end{equation} has a chi-squared distribution with $n-1$ degrees of freedom, i.e., $Y \sim \chi^2(n-1)$. Moreover, $\overline{X}$ and $S^2$ are independent random variables.

The $t$-Distribution

The next distribution that we need is the Student's t-distribution (or simply the t-distribution). Here, we provide the definition and some properties of the $t$-distribution. $\\$

The t-Distribution

Definition . Let $Z \sim N(0,1)$, and $Y \sim \chi^2(n)$, where $n \in \mathbb{N}$. Also assume that $Z$ and $Y$ are independent. The random variable $T$ defined as \begin{align}%\label{} T=\frac{Z}{\sqrt{Y / n}} \end{align} is said to have a $t$-distribution with $n$ degrees of freedom shown by \begin{align}%\label{} T \sim T(n). \end{align} Properties:
  1. The $t$-distribution has a bell-shaped PDF centered at $0$, but its PDF is more spread out than the normal PDF (Figure 8.7).
  2. $ET=0$, for $n>0$. But $ET$, is undefined for $n=1$.
  3. $\textrm{Var}(T)=\frac{n}{n-2}$, for $n>2$. But, $\textrm{Var}(T)$ is undefined for $n=1,2$.
  4. As $n$ becomes large, the $t$ density approaches the standard normal PDF. More formally, we can write
  5. \begin{align}%\label{eq:union-bound} T(n) \ \xrightarrow{d}\ N(0,1). \end{align}
  6. For any $p \in [0,1]$ and $n \in \mathbb{N}$, we define $t_{p,n}$ as the real value for which \begin{align}%\label{} P(T > t_{p,n})=p. \end{align} Since the $t$-distribution has a symmetric PDF, we have \begin{align}%\label{} t_{1-p,n}=-t_{p,n}. \end{align} In MATLAB, to compute $t_{p,n}$ you can use the following command: $\mathtt{tinv(1-p,n)}$.
Figure 8.7 shows the PDF of $t$-distribution for some values of $n$ and compares them with the PDF of the standard normal distribution. As we see, the $t$ density is more spread out than the standard normal PDF. Figure 8.8 shows $t_{p,n}$.
alpha-color

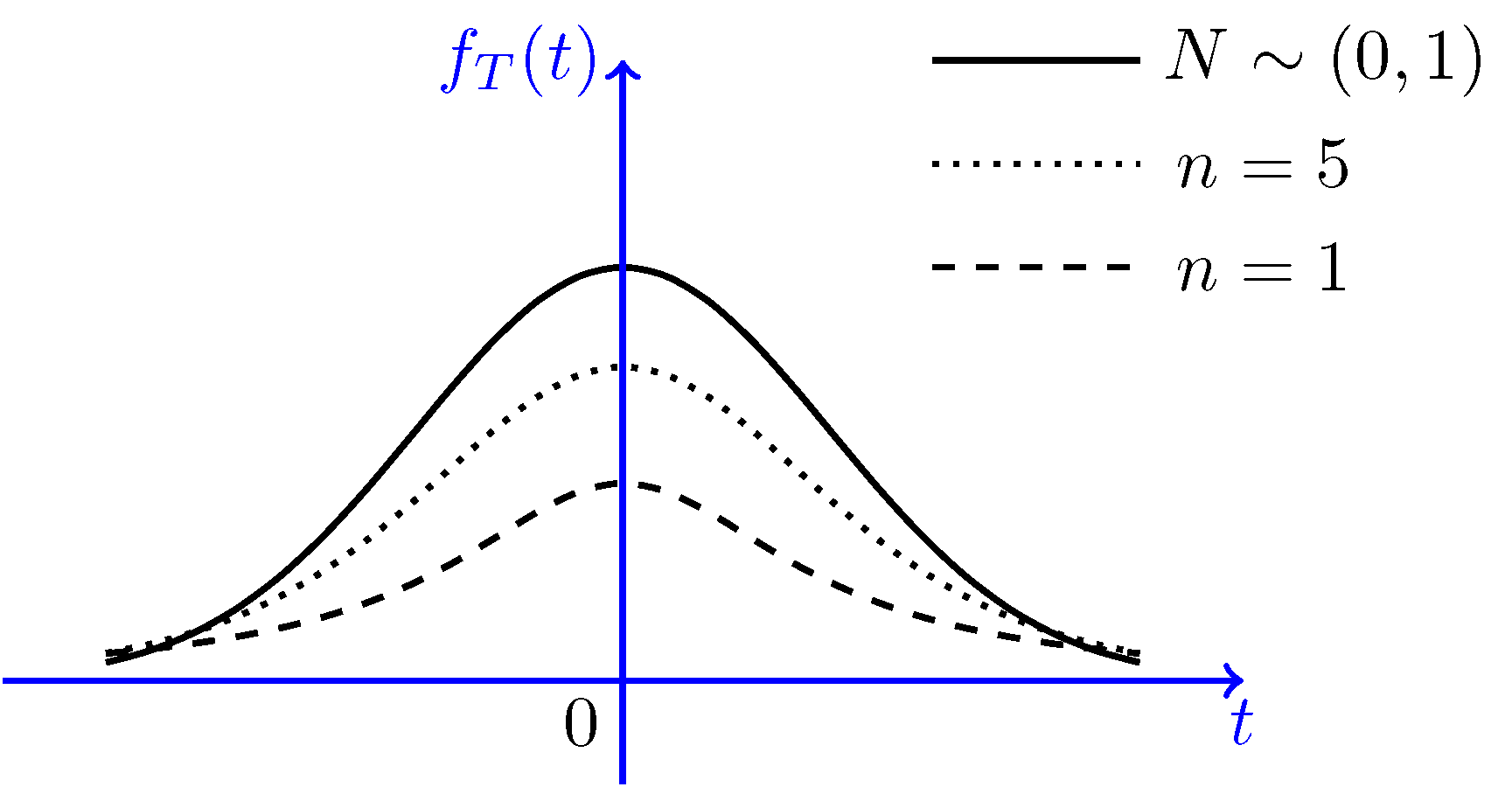

Figure 8.7 - The PDF of $t$-distribution for some values of $n$ compared with the standard normal PDF.
alpha-color

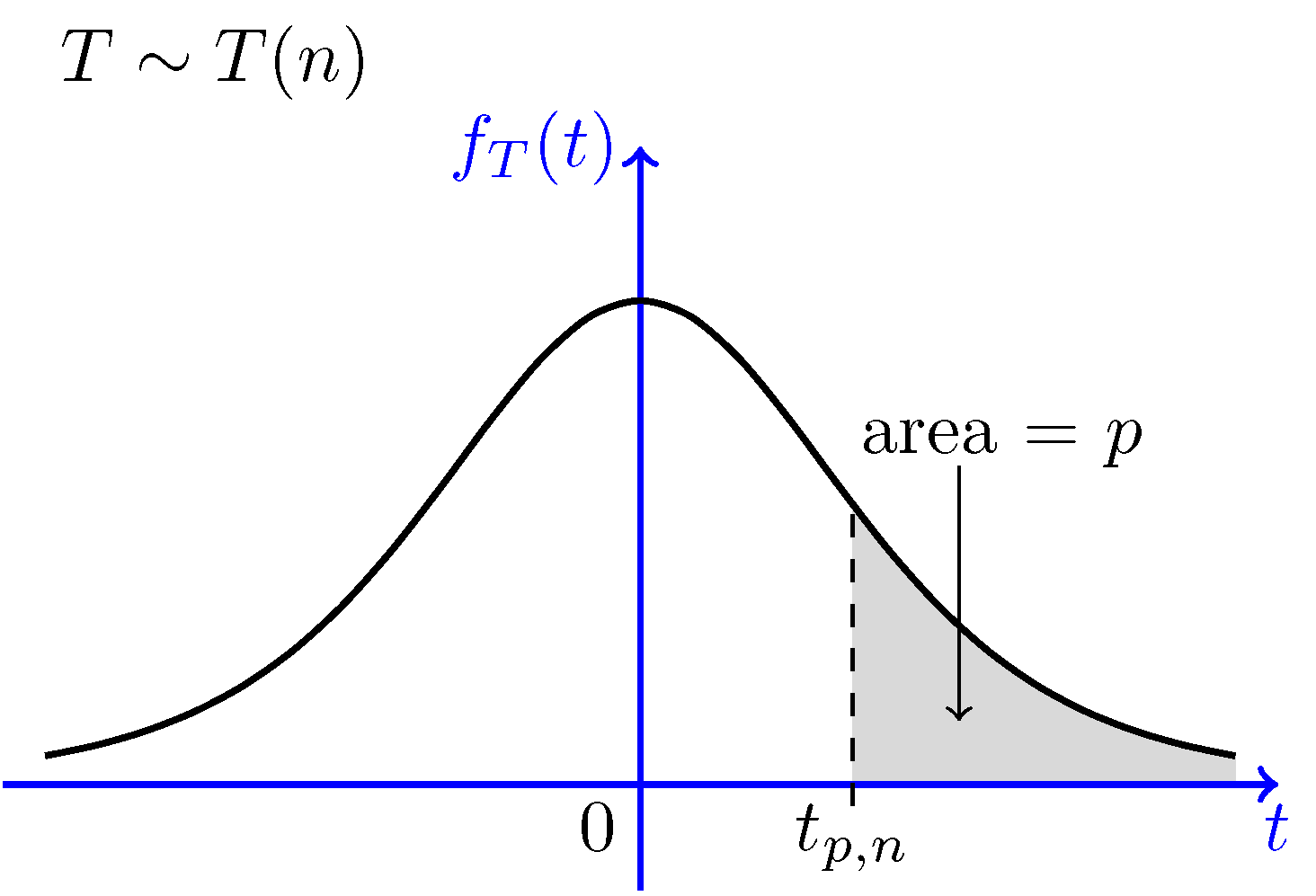

Figure 8.8 - The definition of $t_{p,n}$.
Why do we need the $t$-distribution? One reason is the following theorem which we will use in estimating the mean of normal random variables.
Theorem . Let $X_1$, $X_2$, $\cdots$, $X_n$ be i.i.d. $N(\mu, \sigma^2)$ random variables. Also, let $S^2$ be the sample variance for this random sample. Then, the random variable $T$ defined as \begin{equation} T=\frac{\overline{X}-\mu}{S / \sqrt{n}} \end{equation} has a $t$-distribution with $n-1$ degrees of freedom, i.e., $T \sim T(n-1)$.
Proof:
Define the random variable $Z$ as \begin{equation} Z=\frac{\overline{X}-\mu}{\sigma / \sqrt{n}}. \end{equation} Then, $Z \sim N(0,1)$. Also, define the random variable $Y$ as \begin{equation} Y=\frac{(n-1)S^2}{\sigma^2}. \end{equation} Then by Theorem Theorem 8.3, $Y \sim \chi^2(n-1)$. We conclude that the random variable \begin{align}%\label{} T=\frac{Z}{\sqrt{\frac{Y}{n-1}}}=\frac{\overline{X}-\mu}{S / \sqrt{n}} \end{align} has a $t$-distribution with $n-1$ degrees of freedom.

Confidence Intervals for the Mean of Normal Random Variables

Here, we assume that $X_1$, $X_2$, $X_3$, $...$, $X_n$ is a random sample from a normal distribution $N(\mu, \sigma^2)$, and our goal is to find an interval estimator for $\mu$. We no longer require $n$ to be large. Thus, $n$ could be any positive integer. There are two possible scenarios depending on whether $\sigma^2$ is known or not. If the value of $\sigma^2$ is known, we can easily find a confidence interval for $\mu$. This can be done using exactly the same method that we used to estimate $\mu$ for a general distribution for the case of large $n$. More specifically, we know that the random variable \begin{align}%\label{} Q=\frac{\overline{X}-\mu}{\sigma/\sqrt{n}} \end{align} has $N(0,1)$ distribution. In particular, $Q$ is a function of the $X_i$'s and $\mu$, and its distribution does not depend on $\mu$. Thus, $Q$ is a pivotal quantity, and we conclude that $\left[\overline{X}- z_{\frac{\alpha}{2}} \frac{\sigma}{\sqrt{n}} , \overline{X}+ z_{\frac{\alpha}{2}} \frac{\sigma}{\sqrt{n}}\right]$ is $(1-\alpha)100\%$ confidence interval for $\mu$.
Assumptions: A random sample $X_1$, $X_2$, $X_3$, $...$, $X_n$ is given from a $N(\mu, \sigma^2)$ distribution, where $\textrm{Var}(X_i)=\sigma^2$ is known. $\\$

Parameter to be Estimated: $\mu=EX_i$. $\\$

Confidence Interval: $\left[\overline{X}- z_{\frac{\alpha}{2}} \frac{\sigma}{\sqrt{n}} , \overline{X}+ z_{\frac{\alpha}{2}} \frac{\sigma}{\sqrt{n}}\right]$ is a $(1-\alpha)100\%$ confidence interval for $\mu$.

The more interesting case is when we do not know the variance $\sigma^2$. More specifically, we are given $X_1$, $X_2$, $X_3$, $...$, $X_n$, which is a random sample from a normal distribution $N(\mu, \sigma^2)$, and our goal is to find an interval estimator for $\mu$. However, $\sigma^2$ is also unknown. In this case, using Theorem 8.4, we conclude that the random variable $T$ defined as \begin{equation} T=\frac{\overline{X}-\mu}{S / \sqrt{n}} \end{equation} has a $t$-distribution with $n-1$ degrees of freedom, i.e., $T \sim T(n-1)$. Here, the random variable $T$ is a pivotal quantity, since it is a function of the $X_i$'s and $\mu$, and its distribution does not depend on $\mu$ or any other unknown parameters. Now that we have a pivot, the next step is to find a $(1-\alpha)$ interval for $T$. Using the definition of $t_{p,n}$, a $(1-\alpha)$ interval for $T$ can be stated as \begin{align}%\label{} P\left(-t_{\frac{\alpha}{2},n-1} \leq T \leq t_{\frac{\alpha}{2},n-1} \right)= 1-\alpha. \end{align} Therefore, \begin{align}%\label{} P\left(-t_{\frac{\alpha}{2},n-1} \leq \frac{\overline{X}-\mu}{S / \sqrt{n}} \leq t_{\frac{\alpha}{2},n-1} \right)= 1-\alpha, \end{align} which is equivalent to \begin{align}%\label{} P\left(\overline{X}- t_{\frac{\alpha}{2},n-1}\frac{S}{\sqrt{n}} \leq \mu \leq \overline{X}+ t_{\frac{\alpha}{2},n-1} \frac{S}{\sqrt{n}} \right)= 1-\alpha. \end{align} We conclude that $\left[\overline{X}- t_{\frac{\alpha}{2},n-1}\frac{S}{\sqrt{n}} , \overline{X}+ t_{\frac{\alpha}{2},n-1} \frac{S}{\sqrt{n}}\right]$ is $(1-\alpha)100\%$ confidence interval for $\mu$.
Assumptions: A random sample $X_1$, $X_2$, $X_3$, $...$, $X_n$ is given from a $N(\mu, \sigma^2)$ distribution, where $\mu=EX_i$ and $\textrm{Var}(X_i)=\sigma^2$ are unknown. $\\$

Parameter to be Estimated: $\mu=EX_i$. $\\$

Confidence Interval: $\left[\overline{X}- t_{\frac{\alpha}{2},n-1}\frac{S}{\sqrt{n}} , \overline{X}+ t_{\frac{\alpha}{2},n-1} \frac{S}{\sqrt{n}}\right]$ is a $(1-\alpha)$ confidence interval for $\mu$.

Example
A farmer weighs $10$ randomly chosen watermelons from his farm and he obtains the following values (in lbs): \begin{equation} 7.72 \quad 9.58 \quad 12.38 \quad 7.77 \quad 11.27 \quad 8.80 \quad 11.10 \quad 7.80 \quad 10.17 \quad 6.00 \end{equation} Assuming that the weight is normally distributed with mean $\mu$ and variance $\sigma^2$, find a $95 \%$ confidence interval for $\mu$.
  • Solution
    • Using the data we obtain \begin{align}%\label{} &\overline{X}=9.26,\\ &S^2=3.96 \end{align} Here, $n=10$, $\alpha=0.05$, so we need \begin{align}%\label{} t_{0.025,9} \approx 2.262 \end{align} The above value can be obtained in MATLAB using the command $\mathtt{tinv(0.975,9)}$. Thus, we can obtain a $95 \%$ confidence interval for $\mu$ as \begin{align}%\label{} \left[\overline{X}- t_{\frac{\alpha}{2},n-1}\frac{S}{\sqrt{n}} , \overline{X}+ t_{\frac{\alpha}{2},n-1} \frac{S}{\sqrt{n}}\right] &=\\ \hspace{-60pt}&=\left [9.26-2.26 \cdot \frac{\sqrt{3.96}}{\sqrt{10}}, 9.26+2.26 \cdot \frac{\sqrt{3.96}}{\sqrt{10}}\right]\\ \hspace{-60pt}&=[7.84, 10.68]. \end{align} Therefore, $[7.84, 10.68]$ is a $95 \%$ confidence interval for $\mu$.


Confidence Intervals for the Variance of Normal Random Variables

Now, suppose that we would like to estimate the variance of a normal distribution. More specifically, assume that $X_1$, $X_2$, $X_3$, $...$, $X_n$ is a random sample from a normal distribution $N(\mu, \sigma^2)$, and our goal is to find an interval estimator for $\sigma^2$. We assume that $\mu$ is also unknown. Again, $n$ could be any positive integer. By Theorem 8.3, the random variable $Q$ defined as \begin{equation} Q=\frac{(n-1)S^2}{\sigma^2}=\frac{1}{\sigma^2}\sum_{i=1}^{n} (X_i-\overline{X})^2 \end{equation} has a chi-squared distribution with $n-1$ degrees of freedom, i.e., $Q \sim \chi^2(n-1)$. In particular, $Q$ is a pivotal quantity since it is a function of the $X_i$'s and $\sigma^2$, and its distribution does not depend on $\sigma^2$ or any other unknown parameters. Using the definition of $\chi^2_{p,n}$, a $(1-\alpha)$ interval for $Q$ can be stated as \begin{align}%\label{} P\left(\chi^2_{1-\frac{\alpha}{2},n-1} \leq Q \leq \chi^2_{\frac{\alpha}{2},n-1} \right)= 1-\alpha. \end{align} Therefore, \begin{align}%\label{} P\left(\chi^2_{1-\frac{\alpha}{2},n-1} \leq \frac{(n-1)S^2}{\sigma^2} \leq \chi^2_{\frac{\alpha}{2},n-1} \right)= 1-\alpha. \end{align} which is equivalent to \begin{align}%\label{} P\left(\frac{(n-1)S^2}{\chi^2_{\frac{\alpha}{2},n-1}} \leq \sigma^2 \leq \frac{(n-1)S^2}{\chi^2_{1-\frac{\alpha}{2},n-1}} \right)= 1-\alpha. \end{align} We conclude that $\left[\frac{(n-1)S^2}{\chi^2_{\frac{\alpha}{2},n-1}} , \frac{(n-1)S^2}{\chi^2_{1-\frac{\alpha}{2},n-1}} \right]$ is a $(1-\alpha)100\%$ confidence interval for $\sigma^2$.
Assumptions: A random sample $X_1$, $X_2$, $X_3$, $...$, $X_n$ is given from a $N(\mu, \sigma^2)$ distribution, where $\mu=EX_i$ and $\textrm{Var}(X_i)=\sigma^2$ are unknown. $\\$

Parameter to be Estimated: $\textrm{Var}(X_i)=\sigma^2$. $\\$

Confidence Interval: $\left[\frac{(n-1)S^2}{\chi^2_{\frac{\alpha}{2},n-1}} , \frac{(n-1)S^2}{\chi^2_{1-\frac{\alpha}{2},n-1}} \right]$ is a $(1-\alpha)100\%$ confidence interval for $\sigma^2$.

Example
For the data given in Example 8.20, find a $95 \%$ confidence interval for $\sigma^2$. Again, assume that the weight is normally distributed with mean $\mu$ and variance $\sigma^2$, where $\mu$ and $\sigma$ are unknown.
  • Solution
    • As before, using the data we obtain \begin{align}%\label{} &\overline{X}=9.26,\\ &S^2=3.96 \end{align} Here, $n=10$, $\alpha=0.05$, so we need \begin{align}%\label{} \chi^2_{0.025,9}=19.02, \quad \chi^2_{0.975,9}= 2.70 \end{align} The above values can obtained in MATLAB using the commands $\mathtt{chi2inv(0.975,9)}$ and $\mathtt{chi2inv(0.025,9)}$, respectively. Thus, we can obtain a $95 \%$ confidence interval for $\sigma^2$ as \begin{align}%\label{} \left[\frac{(n-1)S^2}{\chi^2_{\frac{\alpha}{2},n-1}} , \frac{(n-1)S^2}{\chi^2_{1-\frac{\alpha}{2},n-1}} \right] &=\left[\frac{9 \times 3.96}{19.02} , \frac{9 \times 3.96}{2.70} \right]\\ &=[1.87 , 13.20]. \end{align} Therefore, $[1.87 , 13.20]$ is a $95 \%$ confidence interval for $\sigma^2$.
