Here, we introduce the generator matrix. The generator matrix, usually shown by $G$, gives us an alternative way of analyzing continuous-time Markov chains. Consider a continuous-time Markov chain $X(t)$. Assume $X(0)=i$. The chain will jump to the next state at time $T_1$, where $T_1 \sim Exponential(\lambda_i)$. In particular, for a very small $\delta>0$, we can write \begin{align*} P(T_1 \lt \delta)&=1-e^{-\lambda_i \delta}\\ &\approx 1-(1-\lambda_i \delta)\\ &=\lambda_i \delta. \end{align*} Thus, in a short interval of length $\delta$, the probability of leaving state $i$ is approximately $\lambda_i \delta$. For this reason, $\lambda_i$ is often called the transition rate out of state $i$. Formally, we can write \begin{align} \lambda_i =\lim_{\delta \rightarrow 0^{+}} \left[ \frac{P\big(X(\delta)\neq i | X(0)=i\big)}{\delta}\right] \hspace{30pt} (11.7) \end{align} Since we go from state $i$ to state $j$ with probability $p_{ij}$, we call the quantity $g_{ij}=\lambda_i p_{ij}$, the transition rate from state $i$ to state $j$. Here, we introduce the generator matrix, $G$, whose $(i,j)$th element is $g_{ij}$, when $i \neq j$. We choose the diagonal elements ($g_{ii}$) of $G$ such that the rows of $G$ sum to $0$. That is, we let \begin{align*} g_{ii}&=-\sum_{j \neq i} g_{ij}\\ &=-\sum_{j \neq i}\lambda_i p_{ij}\\ &=-\lambda_i \sum_{j \neq i}p_{ij}\\ &=-\lambda_i. \end{align*} The last equality resulted as follows: If $\lambda_i=0$, then clearly $$\lambda_i \sum_{j \neq i}p_{ij}=\lambda_i=0.$$ If $\lambda_i \neq 0$, then $p_{ii}=0$ (no self-transitions), so $$\sum_{j \neq i}p_{ij}=1.$$ It turns out the generator matrix is useful in analyzing continuous-time Markov chains.

---

Example
Explain why the following approximations hold:

1. $p_{jj}(\delta) \approx 1+g_{jj} \delta$, for all $j \in S$.
2. $p_{kj}(\delta) \approx \delta g_{kj}$, for $k \neq j$.

---

---

Example
Consider the continuous Markov chain of Example 11.17: A chain with two states $S=\{0, 1\}$ and $\lambda_0=\lambda_1=\lambda>0$. In that example, we found that the transition matrix for any $t \geq 0$ is given by \begin{equation} \nonumber P(t) = \begin{bmatrix} \frac{1}{2}+\frac{1}{2}e^{-2\lambda t} & \frac{1}{2}-\frac{1}{2}e^{-2\lambda t} \\[5pt] \frac{1}{2}-\frac{1}{2}e^{-2\lambda t} & \frac{1}{2}+\frac{1}{2}e^{-2\lambda t} \\[5pt] \end{bmatrix}. \end{equation}

1. Find the generator matrix $G$.
2. Show that for any $t \geq 0$, we have \begin{align*} P'(t)= P(t) G= G P(t), \end{align*} where $P'(t)$ is the derivative of $P(t)$.

---

The equation $P'(t)= P(t) G= G P(t)$ (in the above example) is in fact true in general. To see the proof idea, we can argue as follows. Let $\delta$ be small. By Example 11.20, we have \begin{align*} p_{jj}(\delta) &\approx 1+g_{jj} \delta,\\ p_{kj}(\delta)&\approx \delta g_{kj}, \quad \textrm{for } k \neq j. \end{align*} Using the Chapman-Kolmogorov equation, we can write \begin{align*} P_{ij}(t+\delta) &=\sum_{k \in S} P_{ik}(t)p_{kj}(\delta) \\ &=p_{ij}(t)p_{jj}(\delta)+\sum_{k \neq j} P_{ik}(t)p_{kj}(\delta)\\ &\approx p_{ij}(t)(1+g_{jj} \delta)+\sum_{k \neq j} P_{ik}(t)\delta g_{kj}\\ &= p_{ij}(t)+ \delta p_{ij}(t) g_{jj} + \delta \sum_{k \neq j} P_{ik}(t) g_{kj}\\ &= p_{ij}(t)+ \delta \sum_{k \in S} P_{ik}(t) g_{kj}. \end{align*} Thus, \begin{align*} \frac{P_{ij}(t+\delta)-p_{ij}(t)}{\delta} \approx \sum_{k \in S} P_{ik}(t) g_{kj}, \end{align*} which is the $(i,j)$th element of $P(t)G$. The above argument can be made rigorous. One of the main uses of the generator matrix is finding the stationary distribution. So far, we have seen how to find the stationary distribution using the jump chain. The following result tells us how to find the stationary matrix using the generator matrix.

Proof:

For simplicity, let's assume that $S$ is finite, i.e., $\pi=[\pi_0, \pi_1, \cdots, \pi_r]$, for some $r \in \mathbb{N}$. If $\pi$ is a stationary distribution, then $\pi=\pi P(t)$. Differentiating both sides, we obtain

\begin{align*} 0&= \frac{d}{dt} [\pi P(t)] \\ &= \pi P'(t)\\ &=\pi G P(t) \quad (\textrm{backward equations}) \end{align*} Now, let $t=0$ and remember that $P(0)=I$, the identity matrix. We obtain \begin{align*} 0=\pi G P(0)=\pi G. \end{align*} Next, let $\pi$ be a probability distribution on $S$ that satisfies $\pi G=0$. Then, by backward equations, \begin{align*} P'(t)&= G P(t). \end{align*} Multiplying both sides by $\pi$, we obtain \begin{align*} \pi P'(t)=\pi G P(t)=0. \end{align*} Note that $\pi P'(t)$ is the derivative of $\pi P(t)$. Thus, we conclude $\pi P(t)$ does not depend on $t$. In particular, for any $t \geq 0$, we have \begin{align*} \pi P(t)=\pi P(0)=\pi. \end{align*} Therefore, $\pi$ is a stationary distribution.

---

Example
The generator matrix for the continuous Markov chain of Example 11.17 is given by \begin{align*} G= \begin{bmatrix} -\lambda & \lambda \\[5pt] \lambda & -\lambda \\[5pt] \end{bmatrix}. \end{align*} Find the stationary distribution for this chain by solving $\pi G=0$.

---

Transition Rate Diagram:

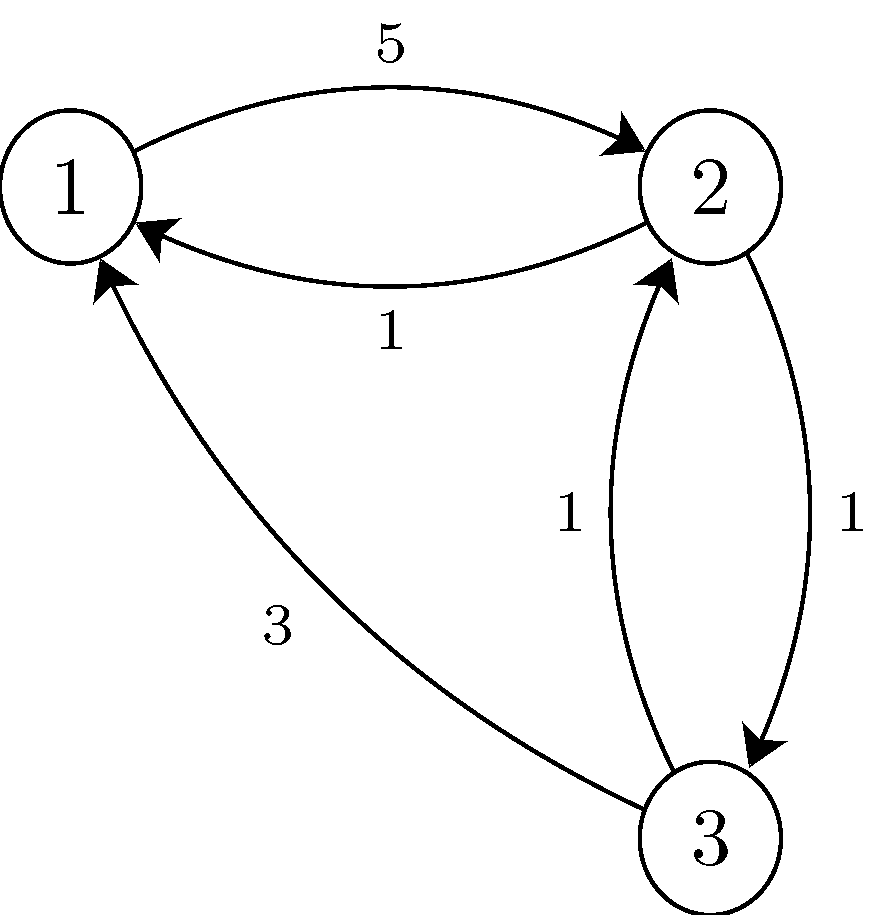

A continuous-time Markov chain can be shown by its transition rate diagram. In this diagram, the values $g_{ij}$ are shown on the edges. The values of $g_{ii}$'s are not usually shown because they are implied by the other values, i.e., $$g_{ii}=-\sum_{j \neq i} g_{ij}.$$ For example, Figure 11.24 shows the transition rate diagram for the following generator matrix \begin{equation} G = \begin{bmatrix} -5 & 5 & 0 \\[5pt] 1 & -2 & 1\\[5pt] 3 & 1 & -4 \\[5pt] \end{bmatrix}, \hspace{30pt} (11.8) \end{equation}
